Model: A-3054

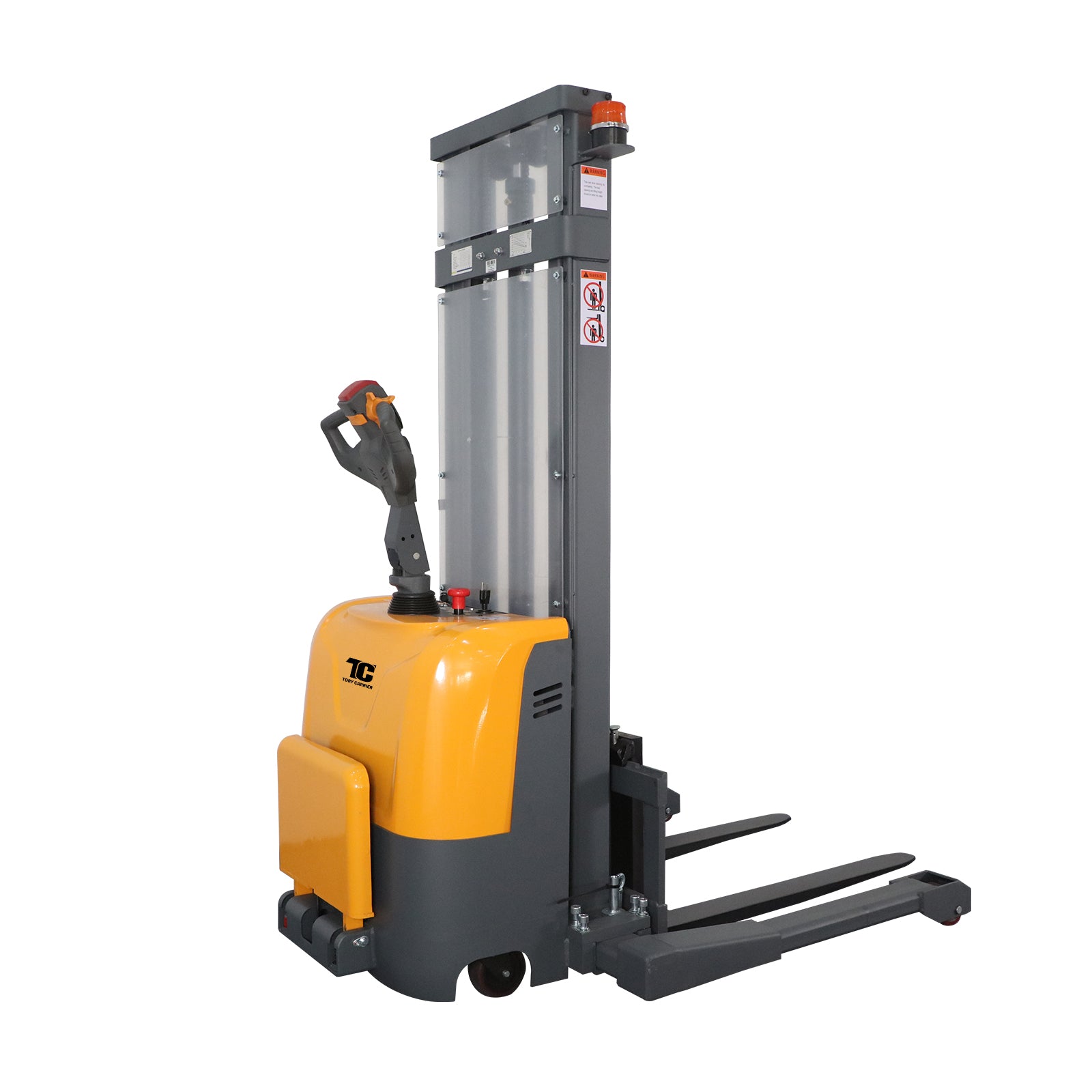

3,300 lb Electric Straddle Stacker with Stand-On Platform, 118 in Lift, Adjustable Legs & Forks, A-3054

$5,899.00 $4,399.00 Save $1,500.00
5 in stock
Key Features
  • 3,300 lb capacity with up to 118" lift height.
  • Stand-on platform supports efficient stand-on operation.
  • Straddle legs with adjustable 42" x 7.9-31½" forks.
  • GEL battery / 24V / 100Ah with 6-8 Hours working time.
  • 53" turning radius for tight spaces.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.
✓ For details on returns and refunds, please see our Return Policy .

Product details

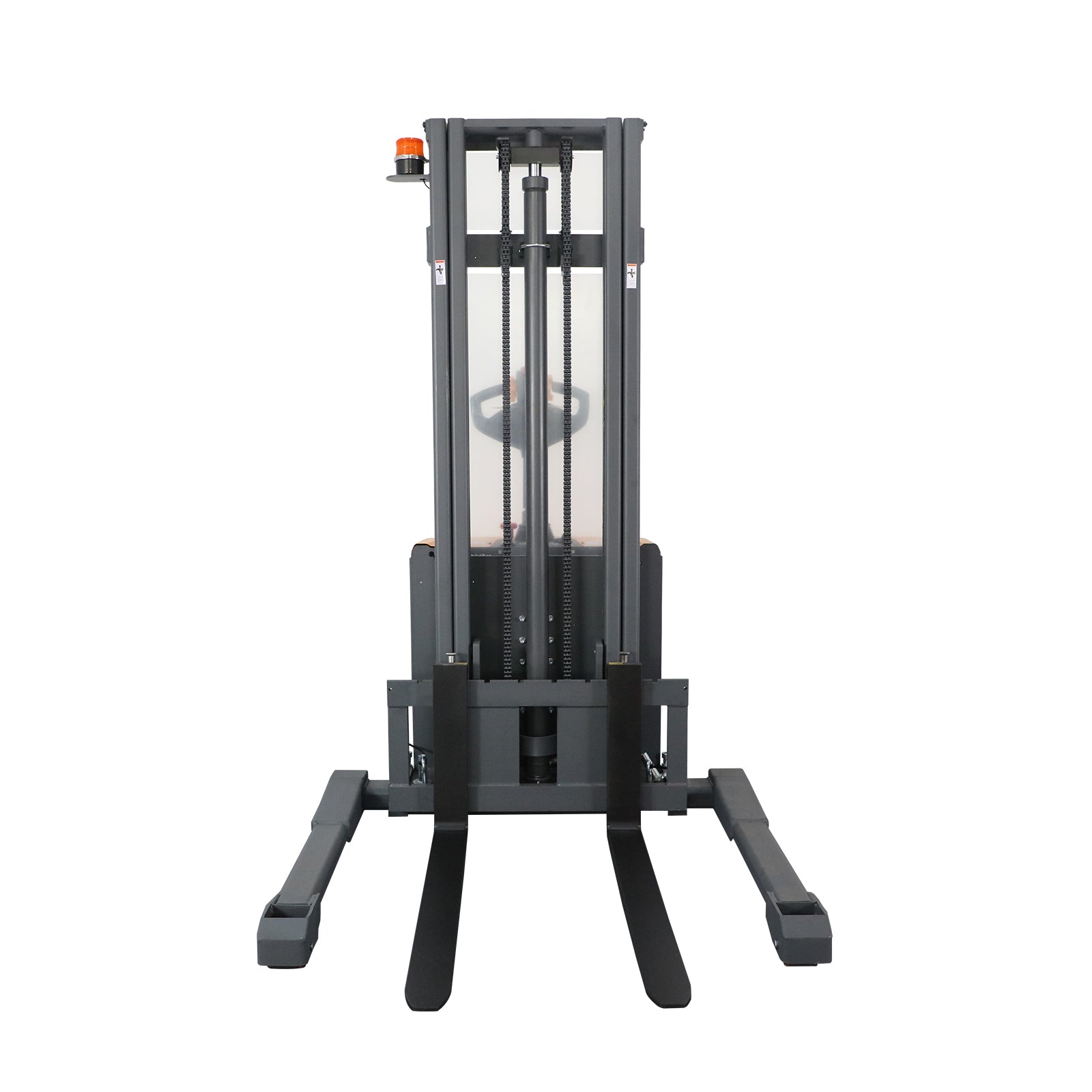

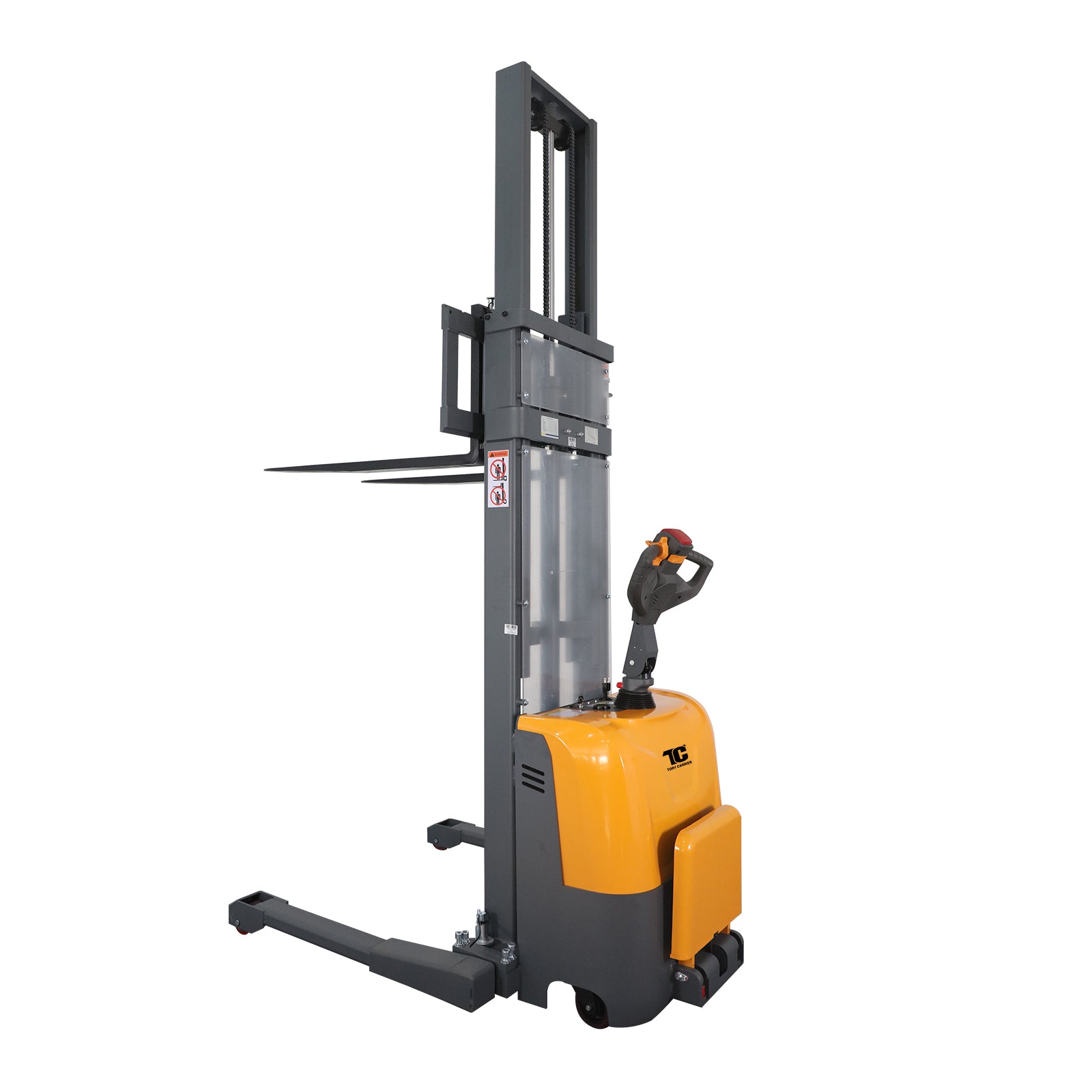

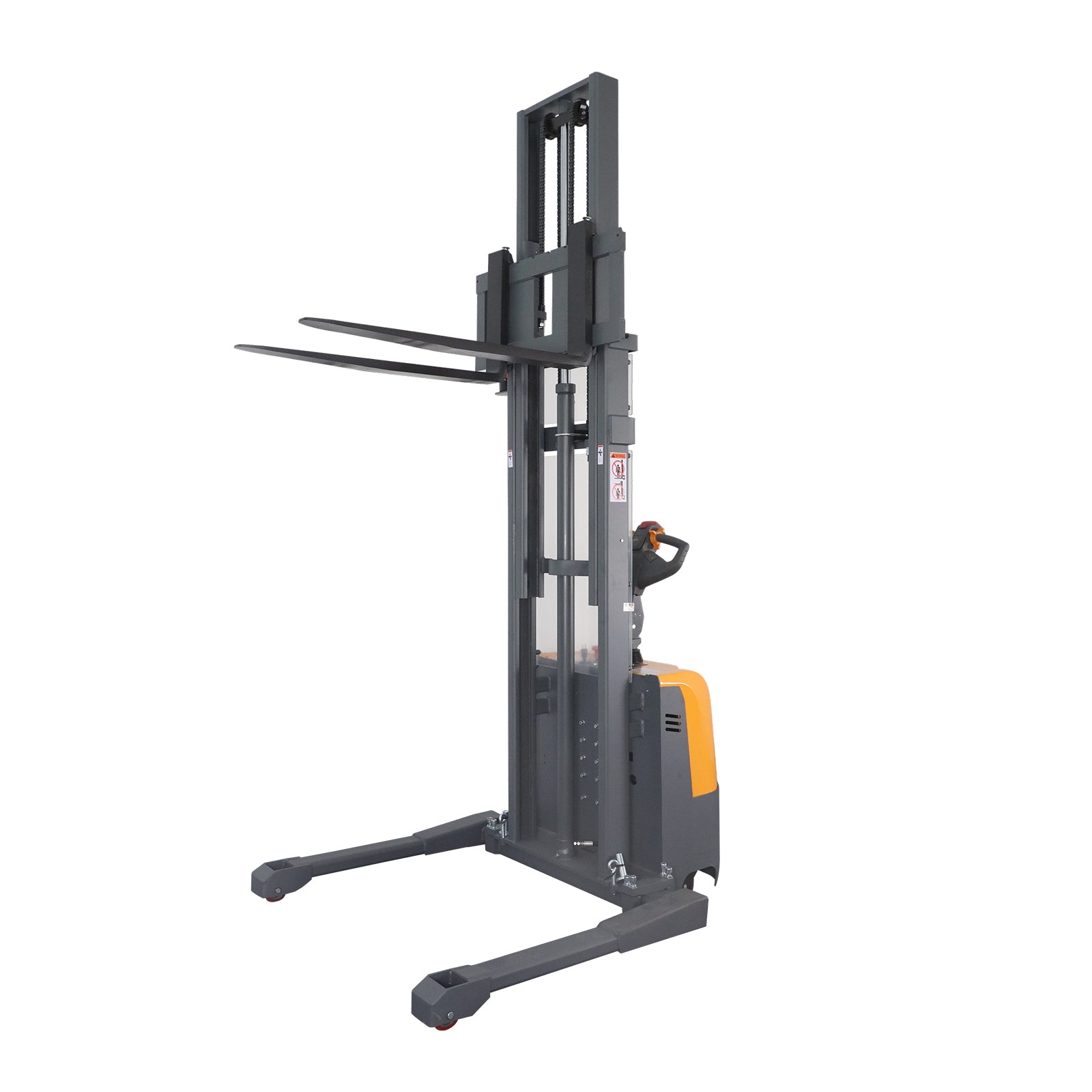

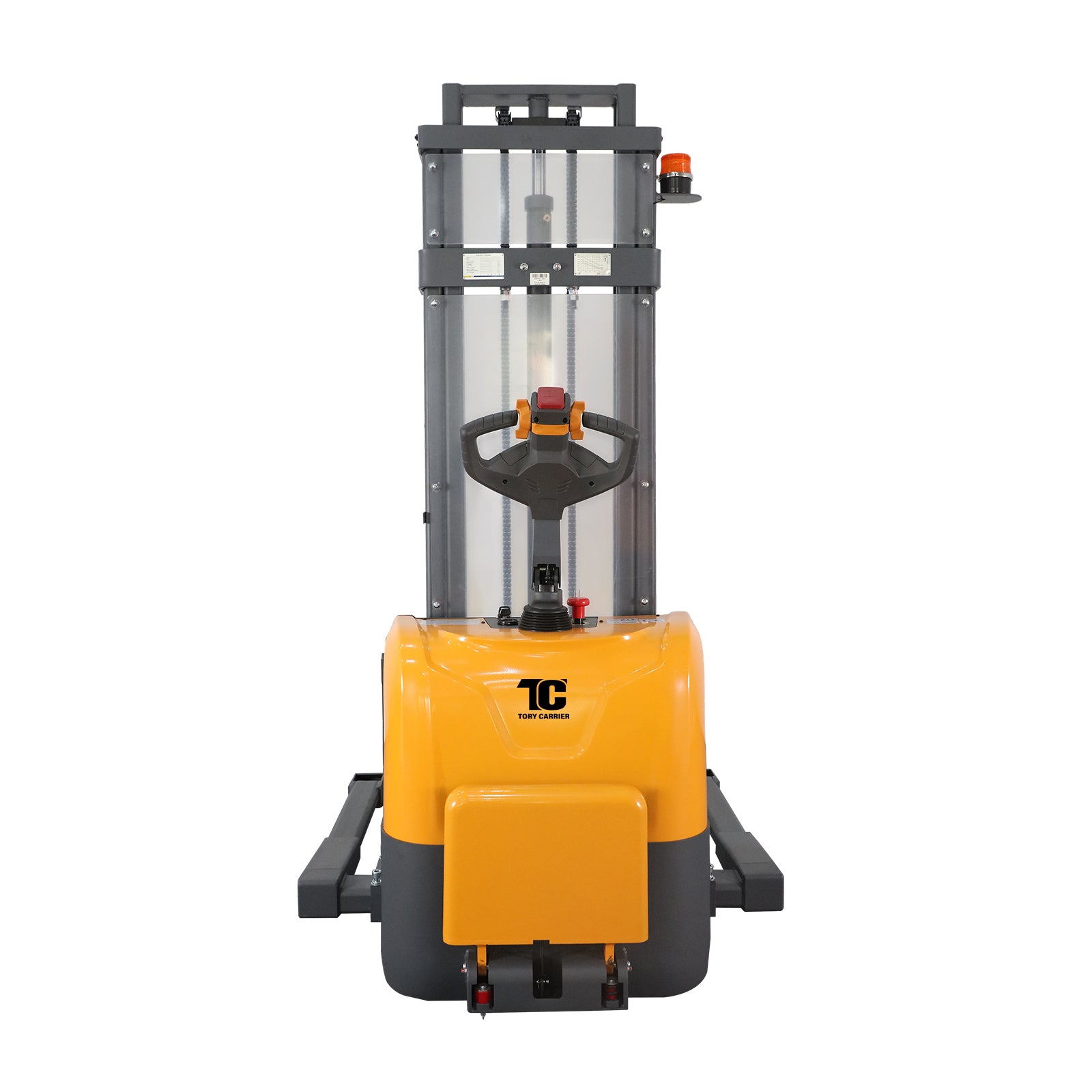

The TORY CARRIER A-3054 Electric Straddle Stacker combines powered travel and lifting with an integrated stand-on platform for efficient pallet handling over longer warehouse routes. With a 3,300 lb load capacity and a maximum lift height of 118 inches, it is designed for pallet stacking, elevated storage, load positioning, and daily warehouse material handling.

Adjustable straddle legs and forks accommodate different pallet and load requirements, while the compact 53-inch turning radius supports maneuvering in confined work areas. Dual maintenance-free GEL batteries, a 650W drive motor, and a 2200W lift motor provide dependable power for travel and lifting throughout daily operations.

Key Features

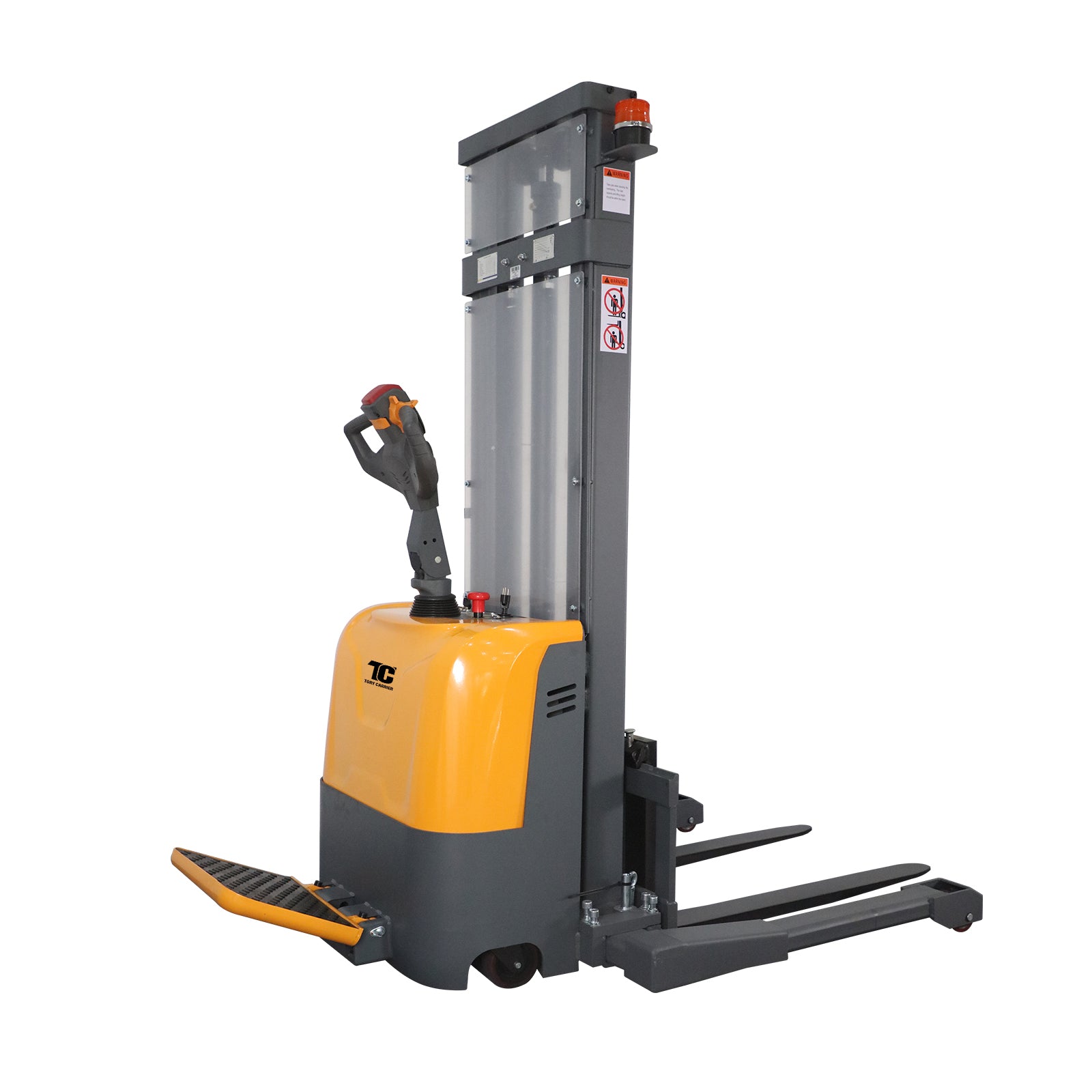

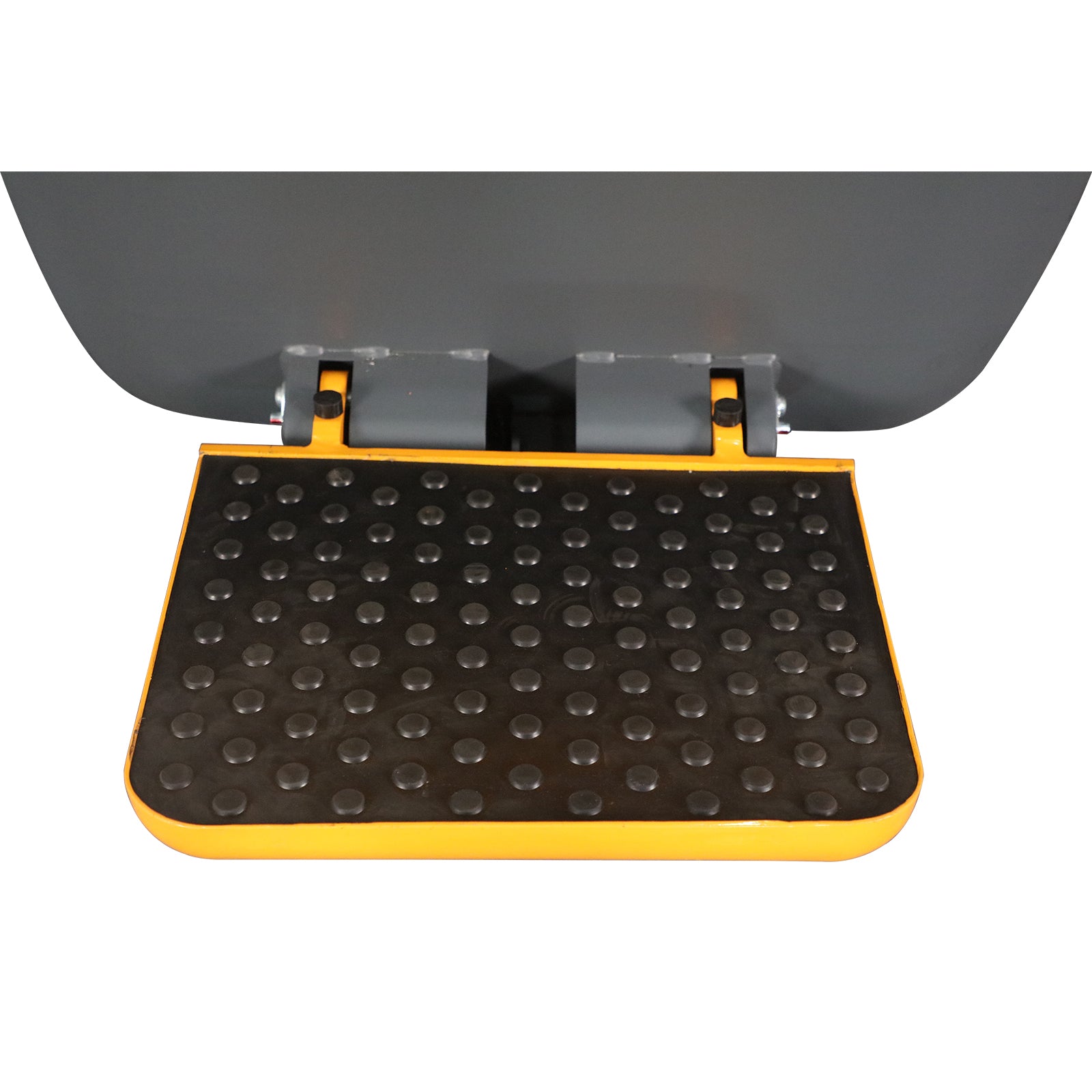

  • Integrated stand-on platform allows stand-on operation for longer travel routes and helps reduce operator walking.
  • 3,300 lb load capacity and 118 in lift height support elevated pallet stacking and load positioning.

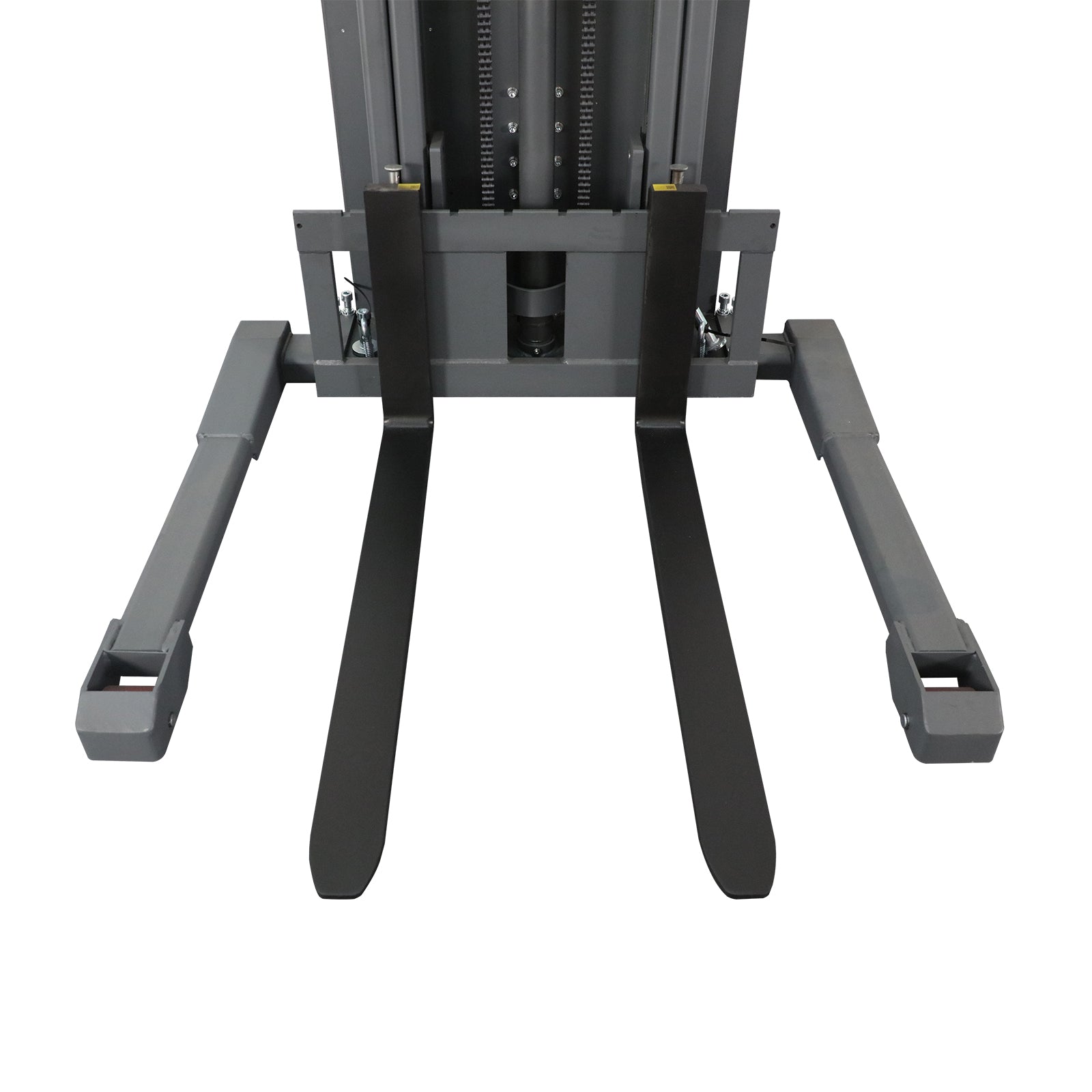

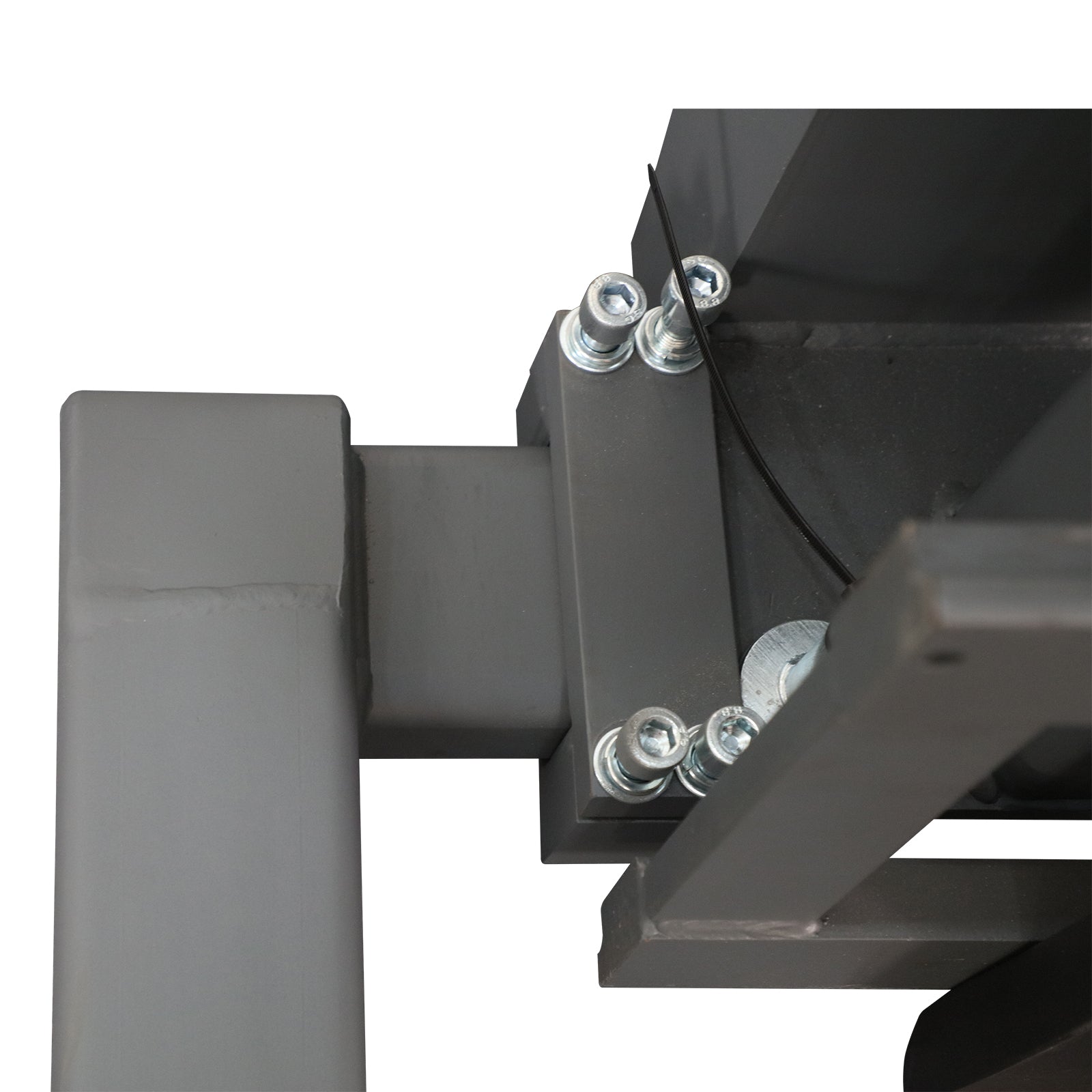

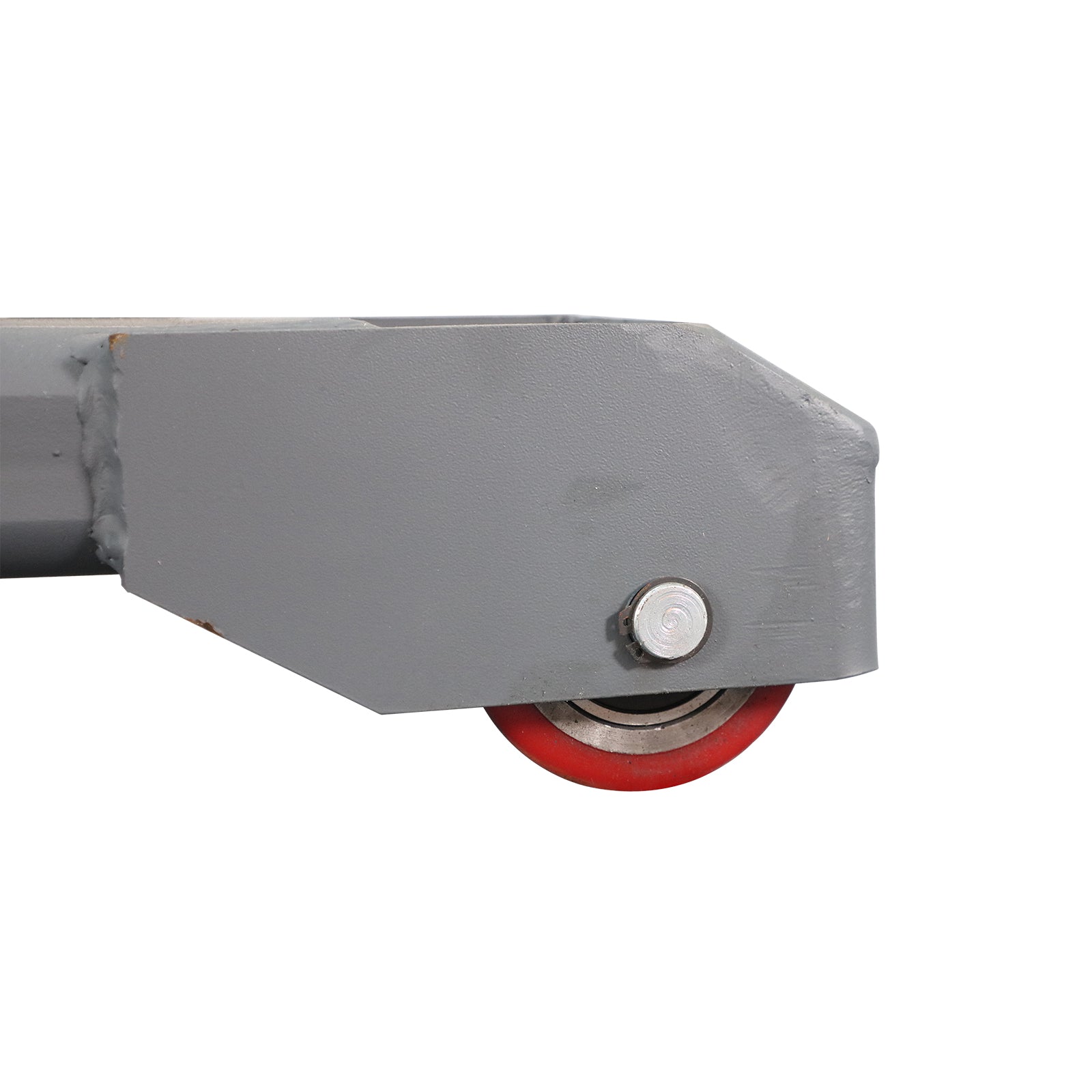

  • Adjustable straddle legs and forks accommodate different pallet sizes and handling requirements.
  • 45.9–61.6 in adjustable leg width provides flexibility for compatible pallets and loads.
  • Dual GEL batteries and powered operation deliver low-maintenance power for travel and lifting.
  • 650W drive and 2200W lift motors provide smooth travel and consistent lifting performance.
  • 53 in turning radius and 87.8 in recommended aisle width support operation in space-conscious warehouse layouts.

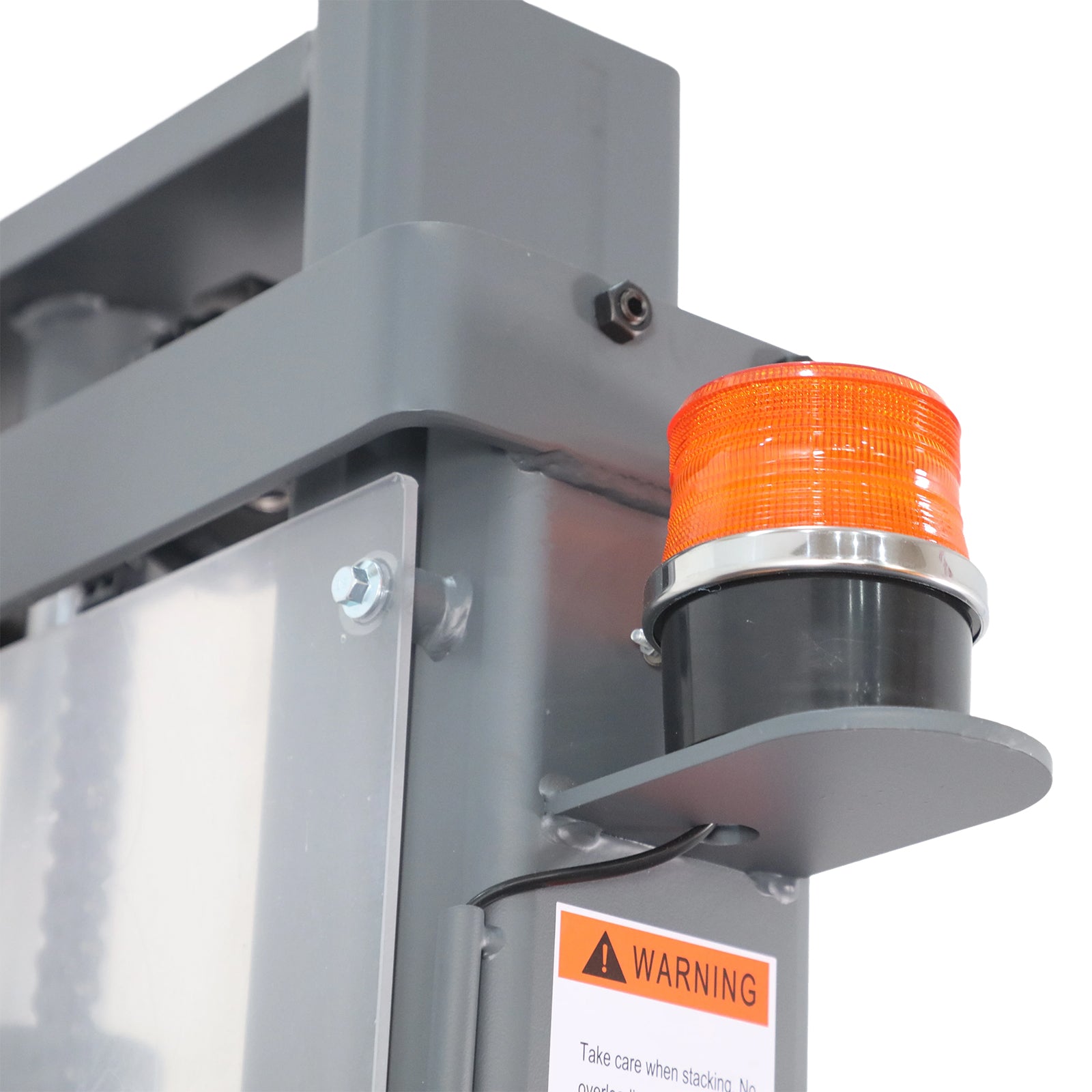

  • Integrated operator monitoring includes a mast shield, hydraulic safety valve, warning light, audible buzzer, operating-hour display, battery indicator, and low-voltage alert.

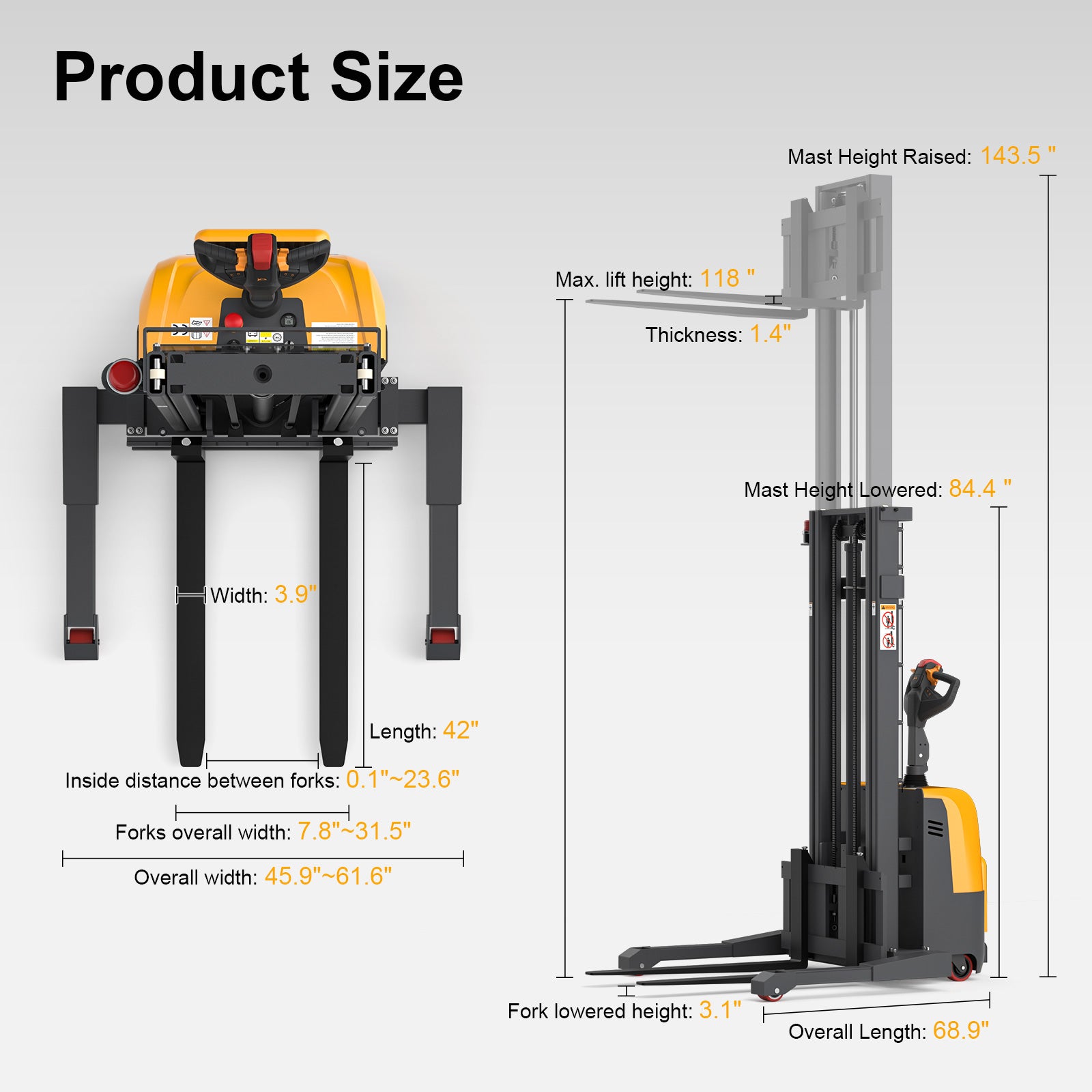

Specification A-3054 A-3055
Operation Type Stand-On Stand-On
Load Capacity 3,300 lb 3,300 lb
Load Center Distance 23.6 in 23.6 in
Mast Height, Lowered 84.4 in 90.4 in
Maximum Lift Height 118 in 130 in
Mast Height, Extended 143.5 in 157.3 in
Fork Height, Lowered 2.8 in 2.8 in
Overall Length 68.9 in 68.9 in
Adjustable Overall Width 45.9–61.6 in 45.9–61.6 in
Adjustable Overall Fork Width 7.9–31.5 in 7.9–31.5 in
Fork Dimensions (T × W × L) 1.4 × 3.9 × 42 in 1.4 × 3.9 × 42 in
Inside Fork Spacing 0.1–23.6 in 0.1–23.6 in
Turning Radius 53 in 53 in
Travel Speed, Loaded / Unloaded 2.8 / 3.1 mph 2.8 / 3.1 mph
Lift Speed, Loaded / Unloaded 3.5 / 5.9 in/s 3.5 / 5.9 in/s
Lowering Speed, Loaded / Unloaded 5.9 / 4.3 in/s 5.9 / 4.3 in/s
Battery 24V / 100Ah GEL 24V / 100Ah GEL
Estimated Working Time 6–8 hours 6–8 hours
Charger Built-in 24V / 10A Built-in 24V / 10A
Operating Weight 1,350 lb 1,675 lb
Warranty 1-Year Limited Warranty 1-Year Limited Warranty

Load Curve Diagram


User Documentation

View Product Manual

Tory Carrier Full Electric Walkie Stackers Installation and Operation

Designed for warehouses, distribution centers, and industrial facilities, this Stand-On Electric Stacker provides an efficient solution for frequent pallet movement and stacking operations. The stand-on design allows operators to travel quickly between work areas while maintaining excellent visibility and control, making it ideal for applications that require repeated loading, unloading, and material transfer. From inventory organization and order preparation to production line support, this stacker helps improve workflow efficiency and reduce operator fatigue in demanding daily operations.

Have Questions About Our Electric Stackers?

What is the difference between a full electric stacker and a Manual stacker?

A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
Lithium Battery vs GEL Battery: Which one should I choose?

Lithium battery models are recommended for customers who need faster charging, longer battery life, lower maintenance, and frequent daily operation. The 24V lithium battery provides consistent power output and helps reduce downtime.

GEL battery models are a cost-effective option for customers with lighter usage requirements and fewer operating hours.

Choose lithium for higher productivity and intensive warehouse operations. Choose GEL for reliable performance with a lower upfront investment.
What type of pallets are compatible with full electric stackers?

This full electric stacker is designed to handle both open-bottom and closed-bottom (block) pallets and is compatible with most standard pallet types.
How long does the battery last on a full charge?

Typically, the battery lasts 6–8 hours under normal use. Charging time is usually 8–10 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?

Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?

Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.

Operation & Maintenance Notes

  • Designed for flat indoor warehouse environments for optimal performance.
  • Recommended operating temperature: -13°F to 104°F.
  • Fully charge the battery before first use to help maximize battery life.
  • Compatible with standard 110V–120V outlets.
  • To maintain battery health, recharge at least once per month during storage periods.
  • For secure transportation, straddle legs and forks are shipped separately and require assembly upon delivery.
