Model: A-3053

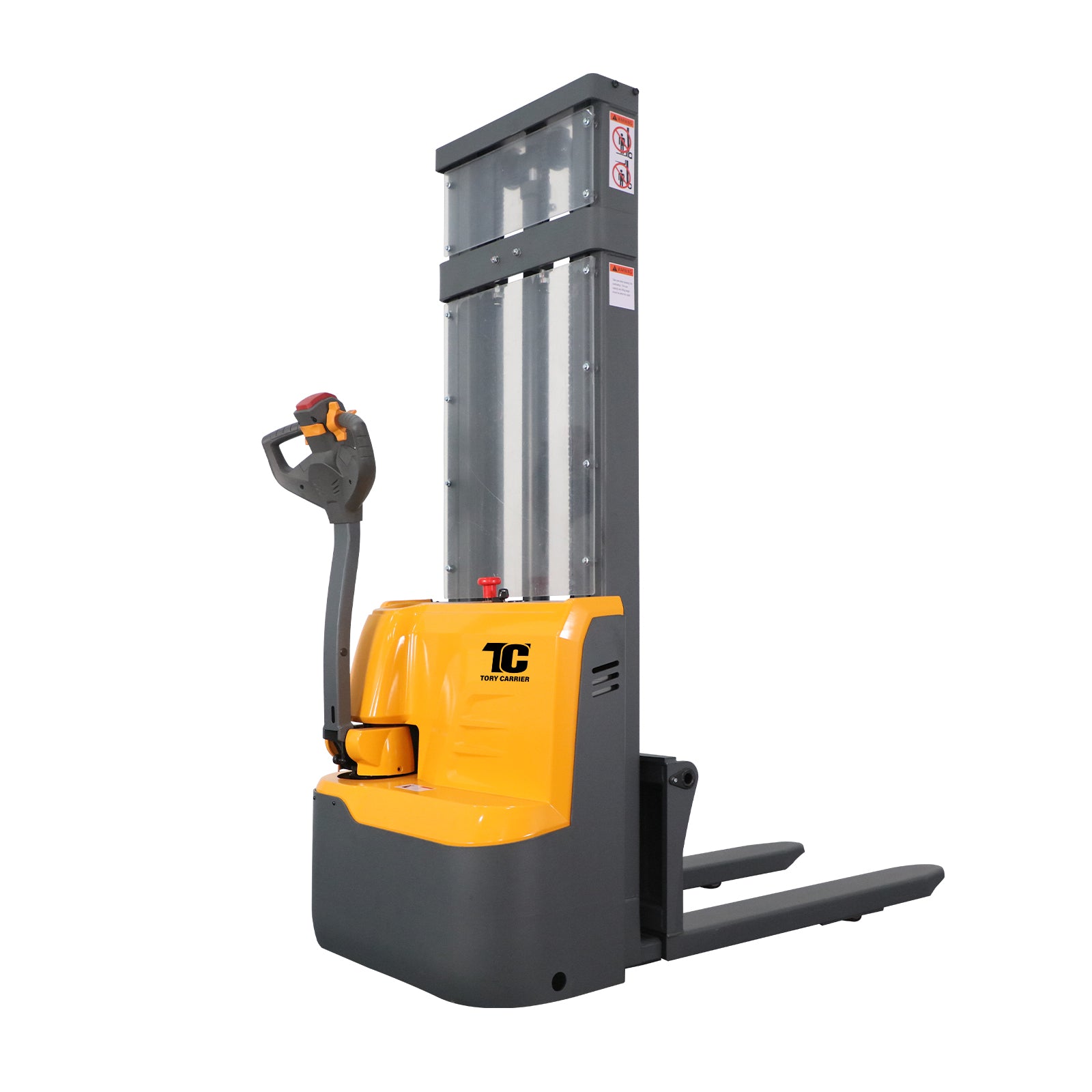

3300 lb Full Electric Fixed-Leg Stacker, 118" Lift Height, Adjustable Forks, A-3053

$5,400.00 $4,000.00 Save $1,400.00
Key Features
  • 3,300 lb capacity with up to 118" lift height.
  • Fixed legs with adjustable 45" x 11.8–27.4" forks for flexible pallet handling.
  • 24V/100Ah GEL battery delivers 6–8 hours of working time for extended operation.
  • 88.4" recommended minimum aisle width for smooth maneuvering in warehouse environments.
View More Details
Fast U.S. Warehouse Shipping Most in-stock orders ship within 1–2 business days
Freight Calculated at Checkout Shipping options are calculated based on your delivery location.

Important Compatibility Notice

This fixed-leg stacker is compatible only with open-bottom U.S. standard pallets. It is NOT compatible with closed-deck or solid-bottom pallets. Please confirm your pallet type before purchase to avoid incompatibility issues.

✓ For details on returns and refunds, please see our Return Policy .

Product details

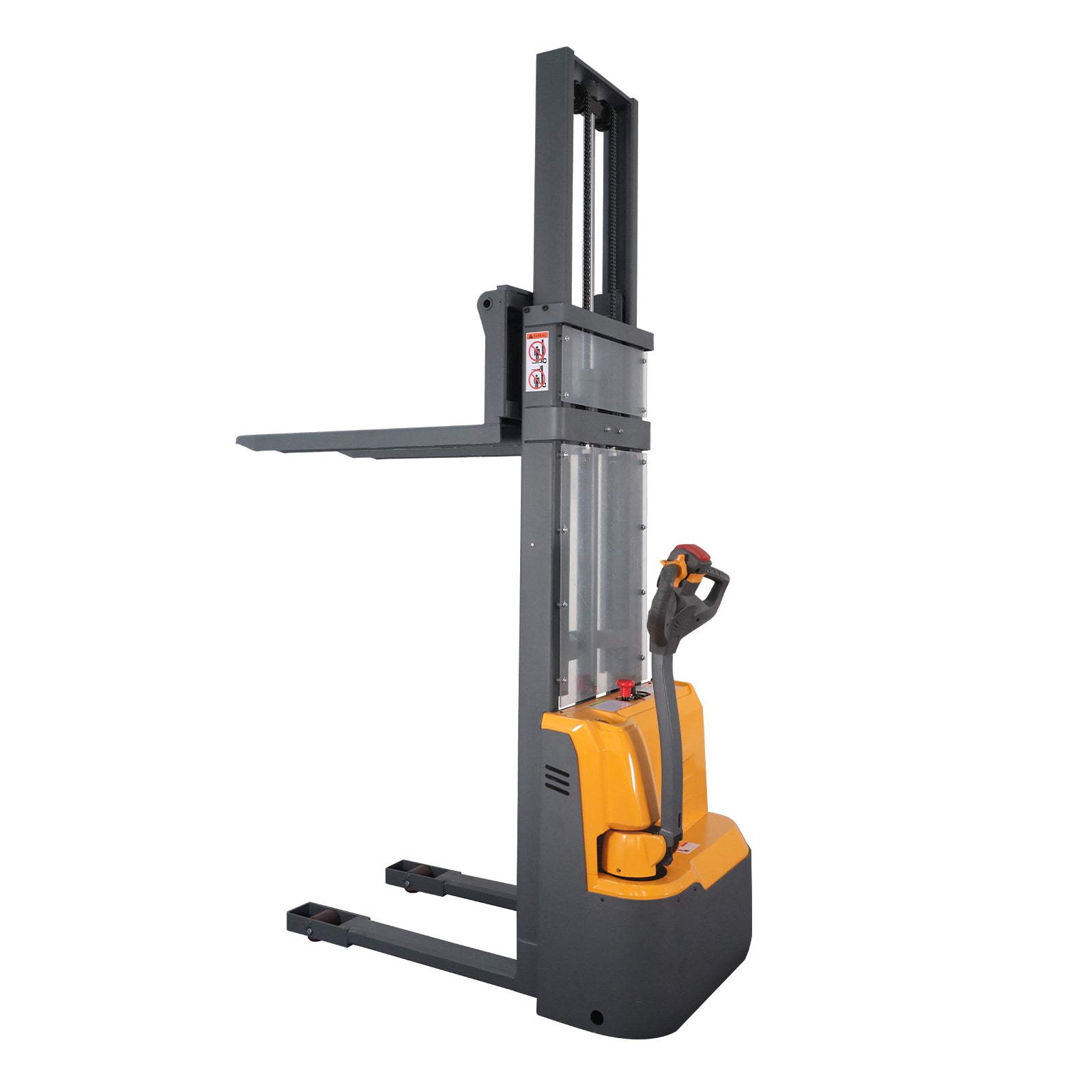

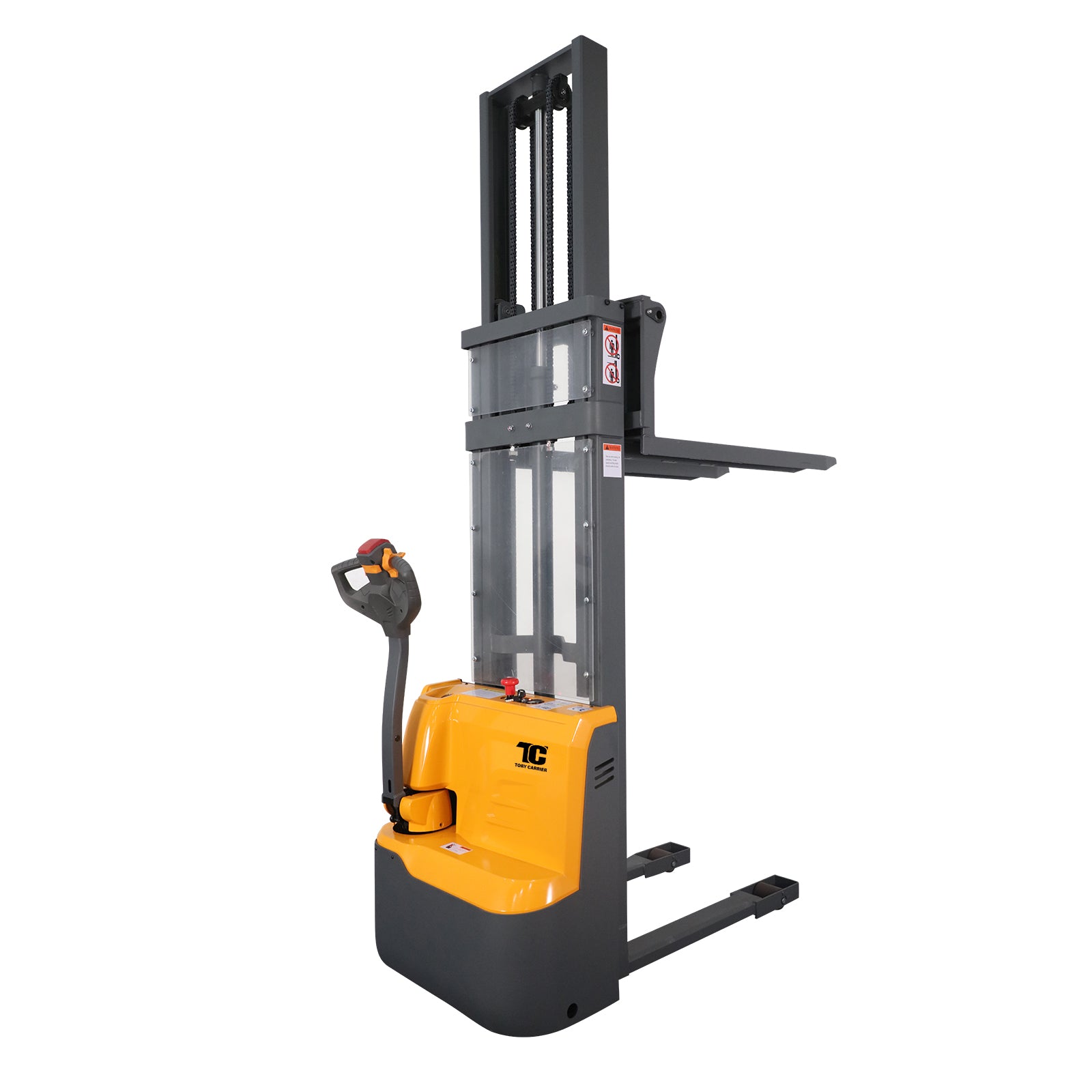

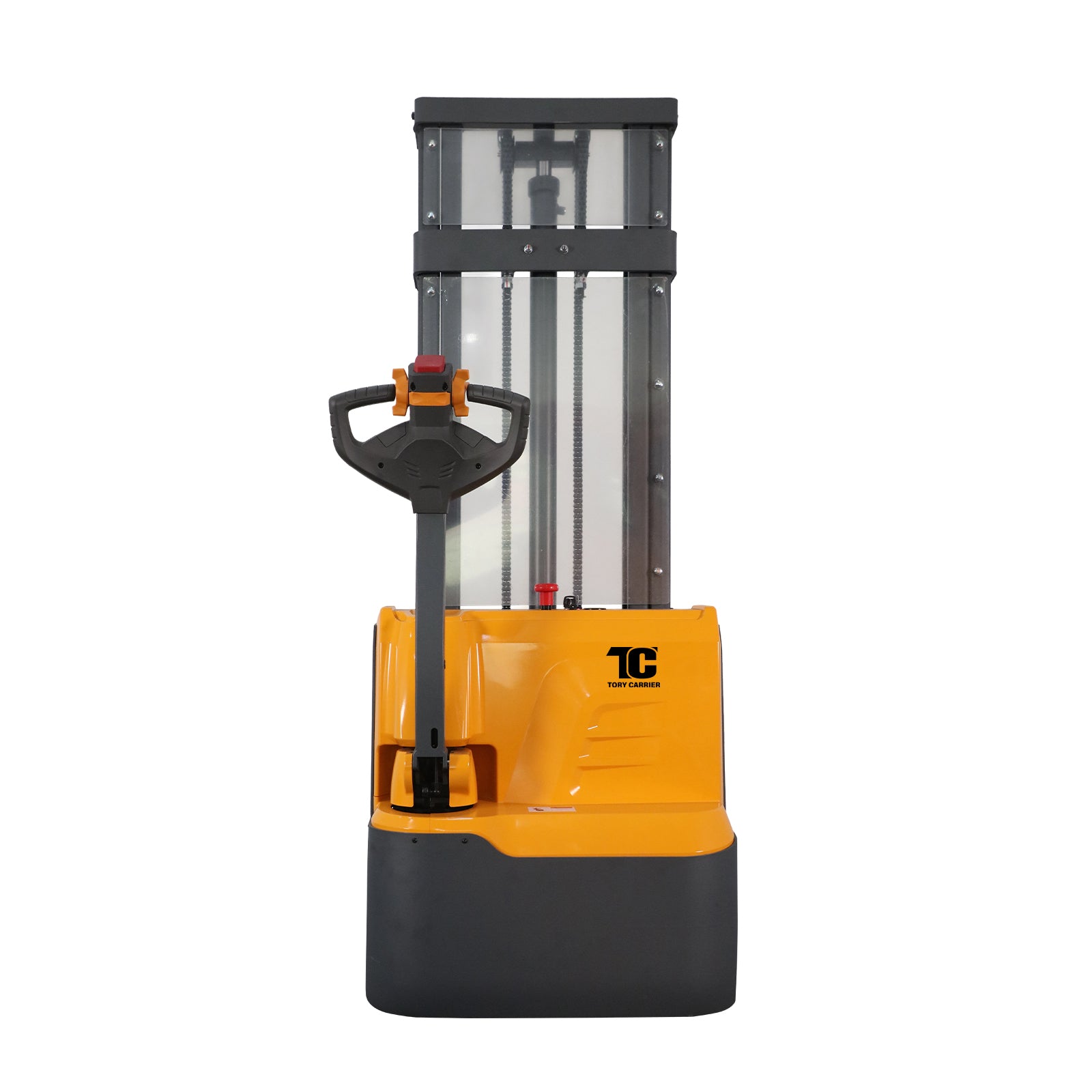

The TORY CARRIER 3,300 lb Electric Fixed-Leg Stacker is designed for pallet lifting, load positioning, and stacking applications in warehouses, distribution centers, manufacturing facilities, and storage operations. With a maximum lift height of 118 inches, it provides access to elevated storage positions while helping facilities make better use of vertical space.

The stacker combines powered travel and lifting with a 24V / 100Ah GEL battery, 650W drive motor, and 2200W lift motor. Its fixed-leg structure and adjustable forks support compatible open-bottom pallets, skids, and other suitable loads, while a 53.7-inch turning radius supports maneuvering in confined work areas.

Key Features

  • 3,300 lb load capacity and 118 in lift height support elevated pallet stacking and load positioning.

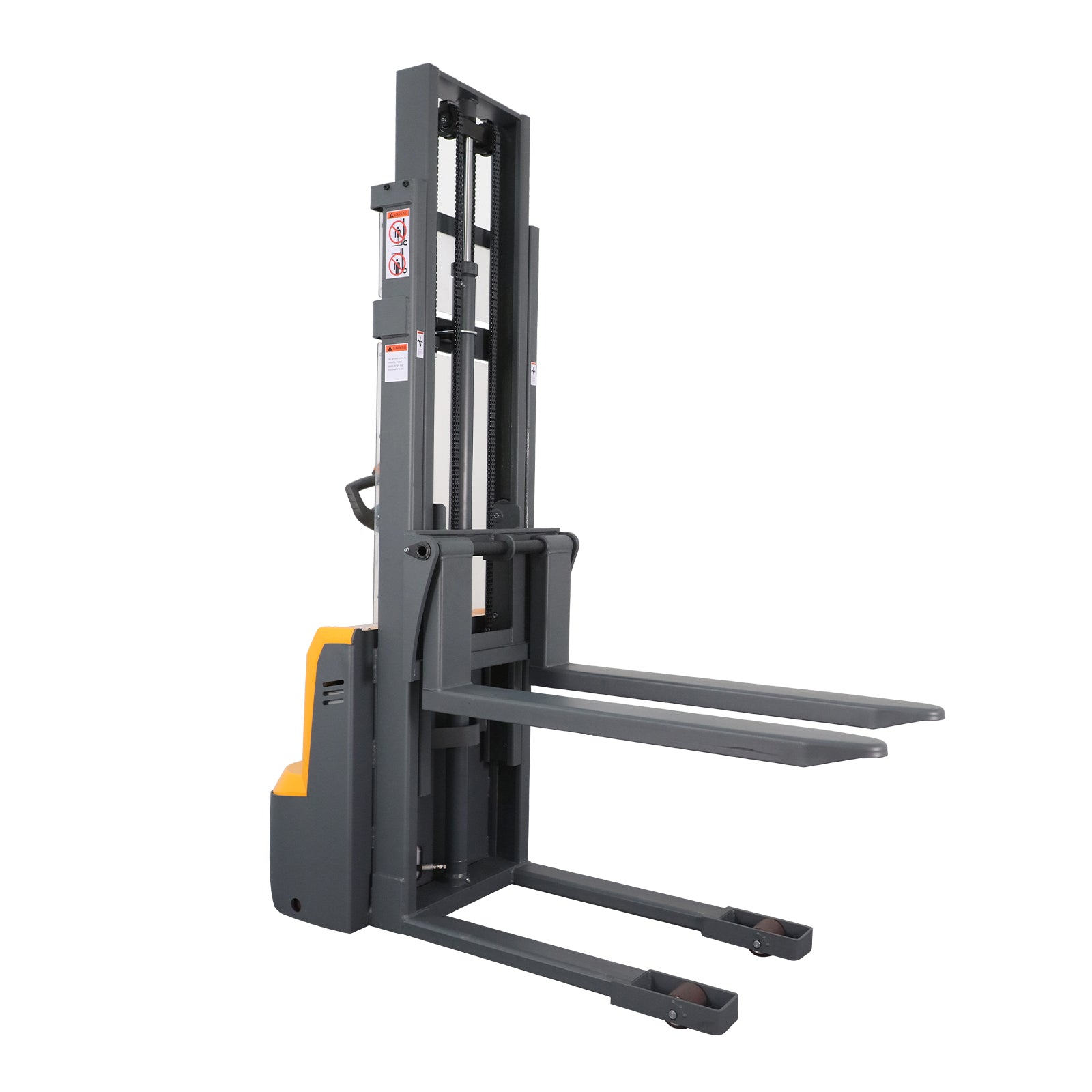

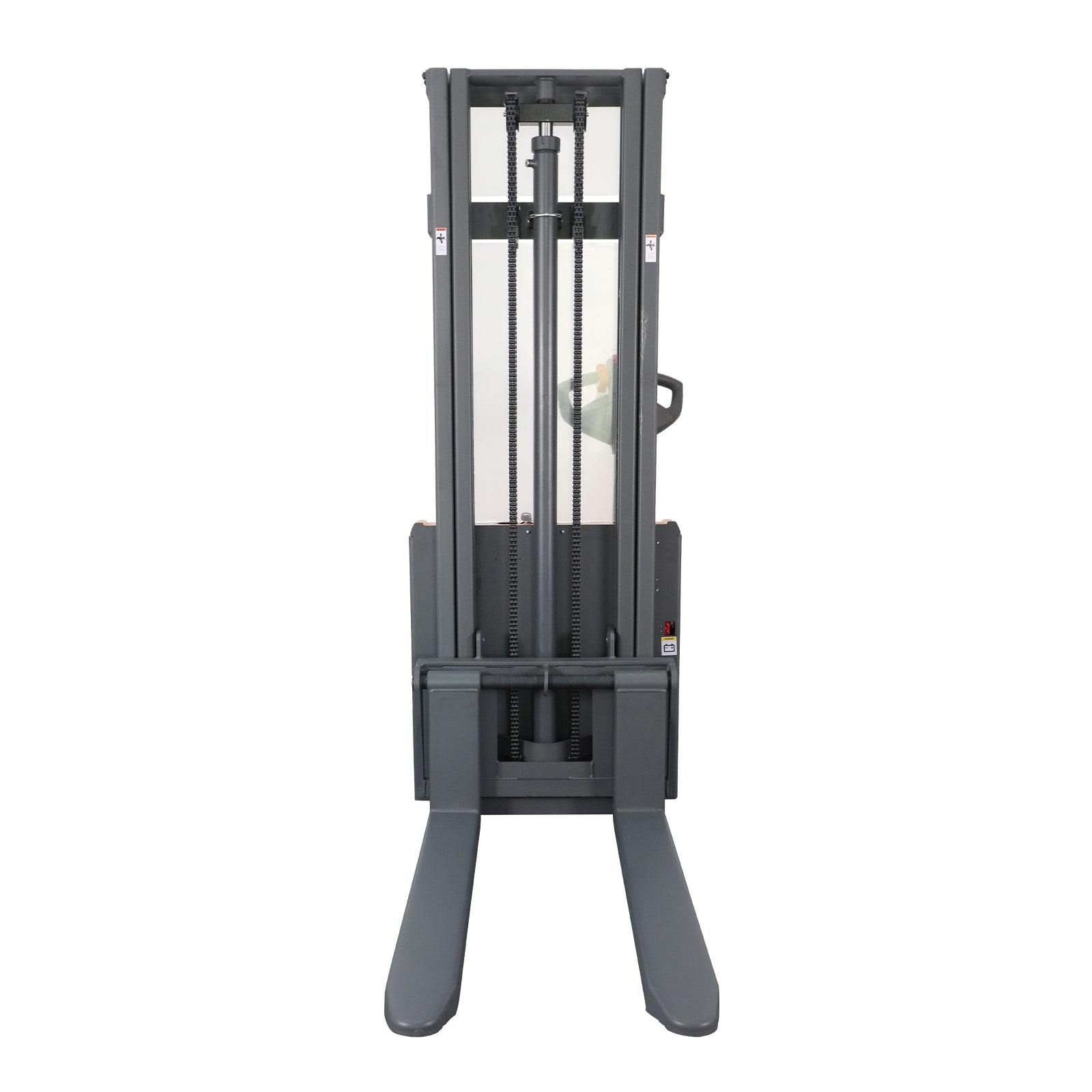

  • Fixed-leg design with adjustable forks accommodates compatible open-bottom pallets, skids, and different load widths.
  • 24V / 100Ah GEL battery provides stable power with lower routine maintenance than a flooded lead-acid battery.
  • Built-in 24V / 10A charger allows convenient charging without separate external charging equipment.
  • 650W drive and 2200W lift motors provide powered travel and consistent lifting performance.
  • 53.7 in turning radius and 88.4 in recommended aisle width support operation in space-conscious warehouse layouts.
  • 3.5 in lowered fork height provides access to compatible low-clearance pallets and loads.

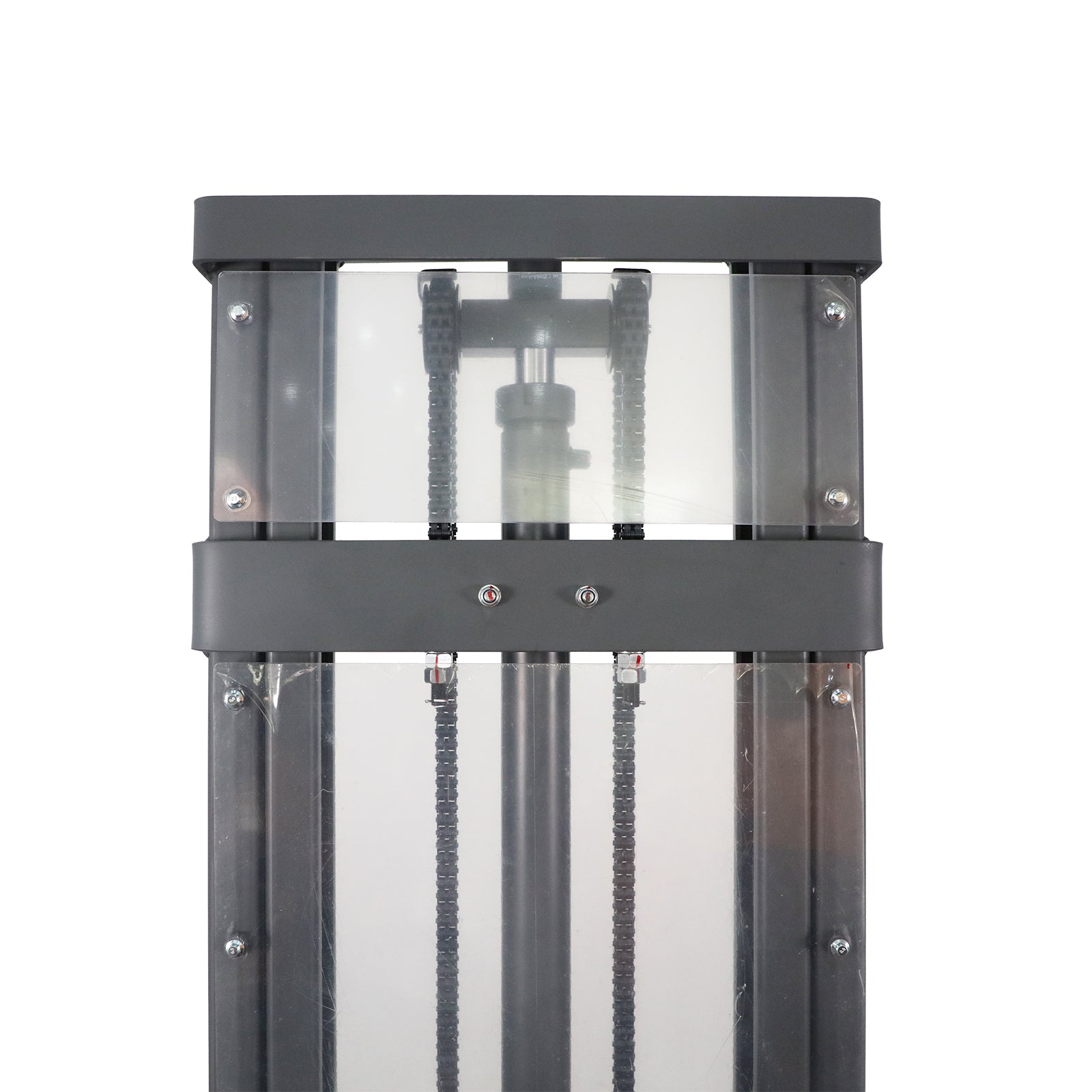

  • Integrated operator monitoring includes a mast shield, warning light, audible buzzer, battery display, operating-hour display, and low-voltage alert.

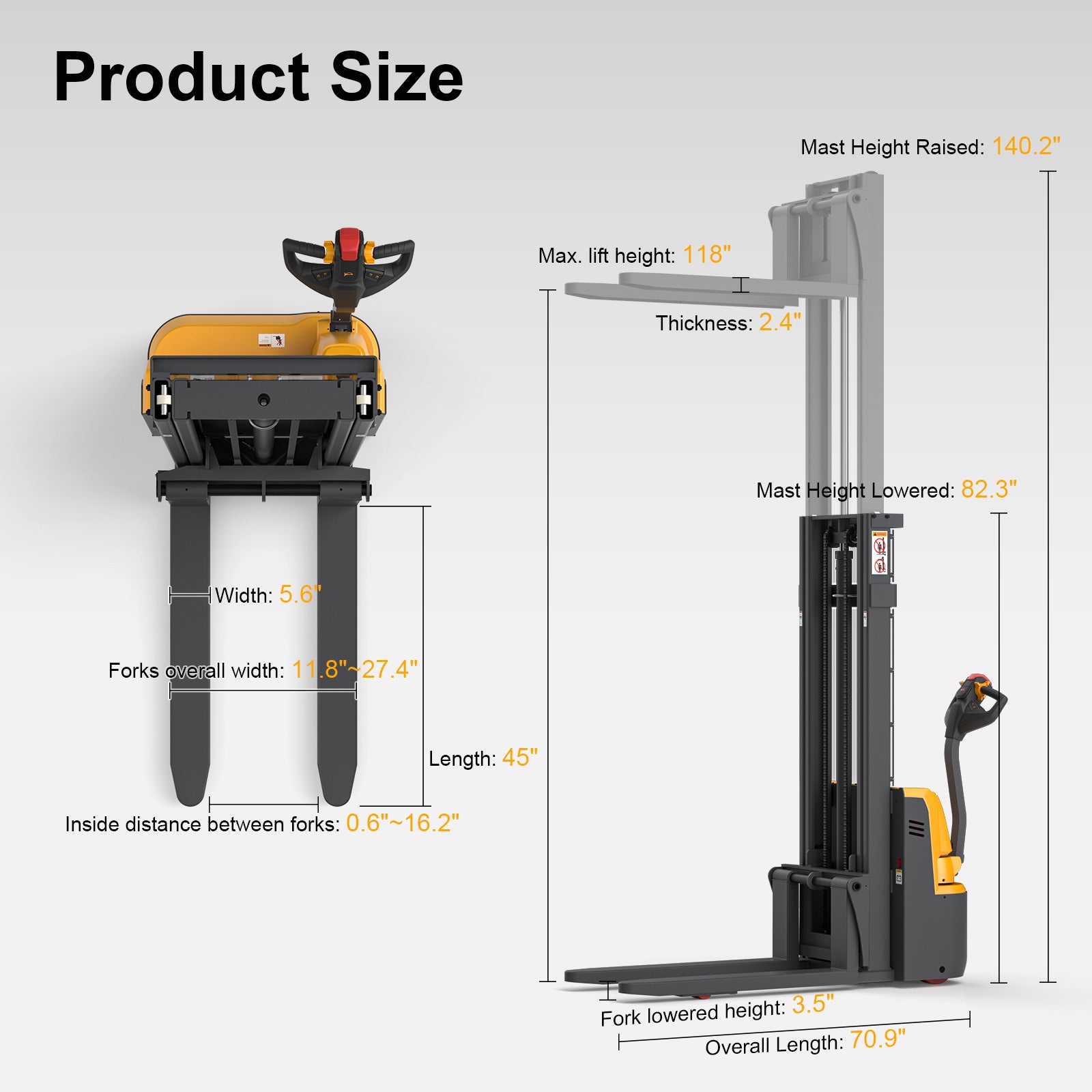

Specification Value
Load Capacity 3300 lbs
Load Center Distance 23.6 inch
Height, Mast Lowered 82.3 inch

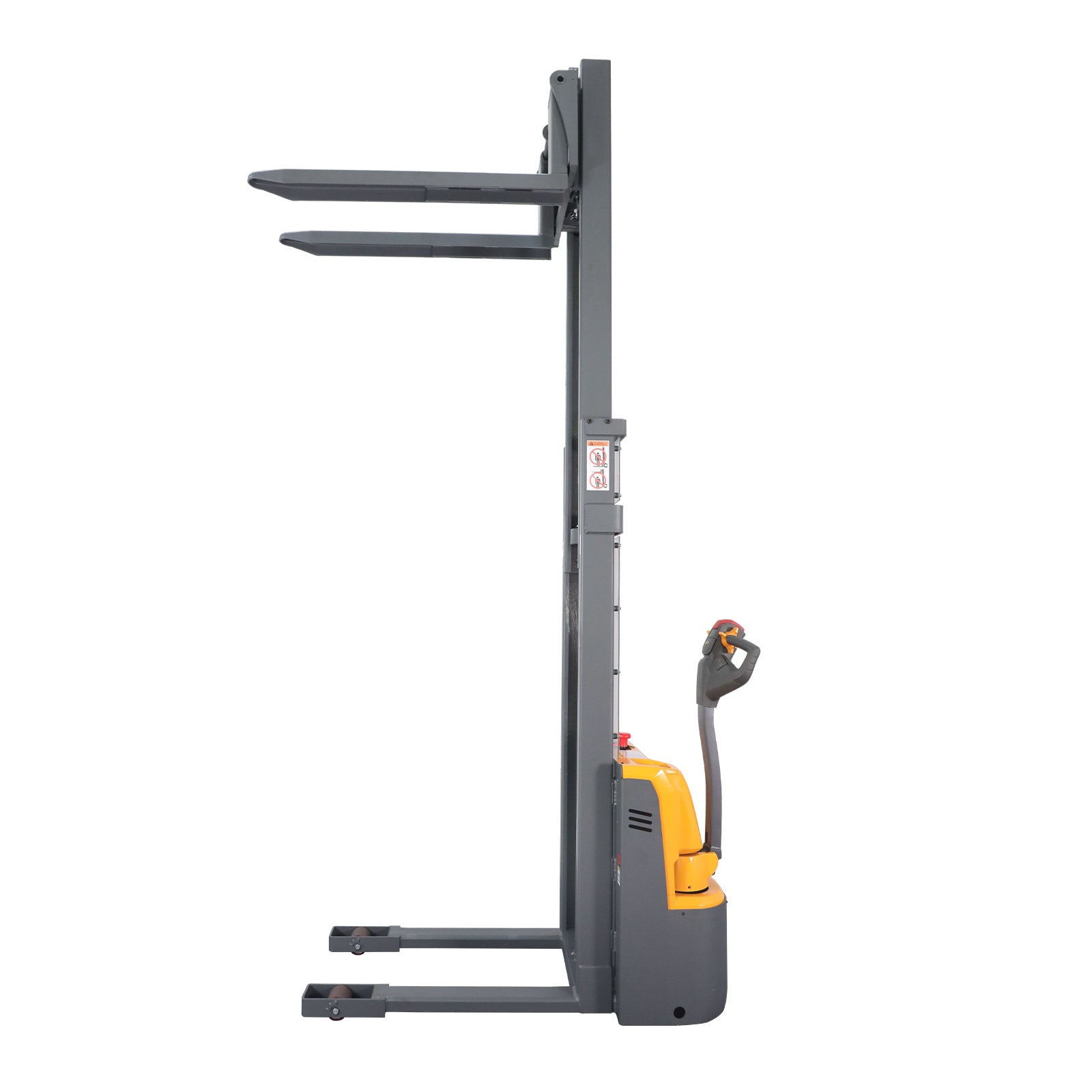

Max. Lifting Height 118 inch
Height, Mast Extended 140.2 inch
Fork Lowered Height 3.5 inch
Overall Length 70.9 inch
Overall Width 31.5 inch
Width Overall Forks 11.8-27.4 inch
Fork Dimensions (thickness × width × length) 2.4 × 5.6 × 45 inch
Distance Between Forks (inside) 0.6–16.2 inch
Turning Radius 53.7 inch
Travel Speed (Laden / Unladen) 2.8 / 3.1 mph
Lift Speed (Laden / Unladen) 3.5 / 5.9 inch/s
Lowering Speed (Laden / Unladen) 5.9 / 4.3 inch/s
Battery 24V / 100Ah GEL Battery
Charger 24V / 10A built-out
Service Weight 1675 lbs

Warranty

 Warranty 1-Year Limited Warranty

User Documentation

Product Manual (PDF)

Tory Carrier Full Electric Walkie Stackers Installation and Operation

Have Questions About Our Electric Stackers?

What is the difference between a full electric stacker and a Manual stacker?

A full electric stacker features electric lifting and electric driving, making it easier and more efficient to operate than a manual stacker, which typically only has electric lifting.
Lithium Battery vs GEL Battery: Which one should I choose?

Lithium battery models are recommended for customers who need faster charging, longer battery life, lower maintenance, and frequent daily operation. The 24V lithium battery provides consistent power output and helps reduce downtime.

GEL battery models are a cost-effective option for customers with lighter usage requirements and fewer operating hours.

Choose lithium for higher productivity and intensive warehouse operations. Choose GEL for reliable performance with a lower upfront investment.
What type of pallets are compatible with full electric stackers?

Thisfixed-leg stackeris compatibleonly with open-bottom U.S. standard pallets. It isNOTcompatible with closed-deck or solid-bottom pallets. Please confirm your pallet type before purchase to avoid incompatibility issues.
How long does the battery last on a full charge?

Typically, the battery lasts 4–6 hours under normal use. Charging time is usually 3–5 hours using a standard 110V/120V outlet.
Can full electric stackers be used on ramps or uneven surfaces?

Full electric stackers are designed for flat, smooth indoor floors. Use on steep ramps or rough ground is not recommended.
What is the maintenance requirement for these stackers?

Minimal maintenance is required. Regularly check battery health, brake function, and hydraulic systems for optimal performance.

Operation & Maintenance Notes

  • Designed for flat indoor warehouse environments for optimal performance.
  • Recommended operating temperature: -13°F to 104°F.
  • Fully charge the battery before first use to help maximize battery life.
  • Compatible with standard 110V–120V outlets.
  • To maintain battery health, recharge at least once per month during storage periods.
  • For secure transportation, straddle legs and forks are shipped separately and require assembly upon delivery.
